Tracker & Beacons

Two components produce vision: the Tracker on the viewing player, and Beacons on anything that should grant extra sight. Both reveal an area of the fog and both run server-side line-of-sight checks to uncover tracked enemies.

The Tracker

BP_Tracker (a Blueprint subclass of UTrackerComponent) is a sphere component you add to the viewing character. It does two jobs:

• Reveals the area around the player (its lit circle is the Fog Manager’s Character Visibility Radius).
• Tracks enemy actors and decides, on the server, whether each one is currently visible to this player.

Assigning what it tracks

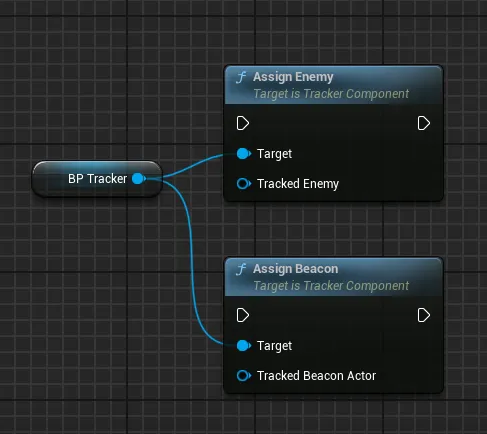

The Tracker exposes two functions, Assign Enemy and Assign Beacon:

Function	Call on	What it does
Assign Enemy	Server	Registers an actor as fog-hidden. It is hidden immediately and only revealed when this player has line of sight to it.
Assign Beacon	Server	Links a beacon actor to this tracker so the beacon’s vision contributes to this player.

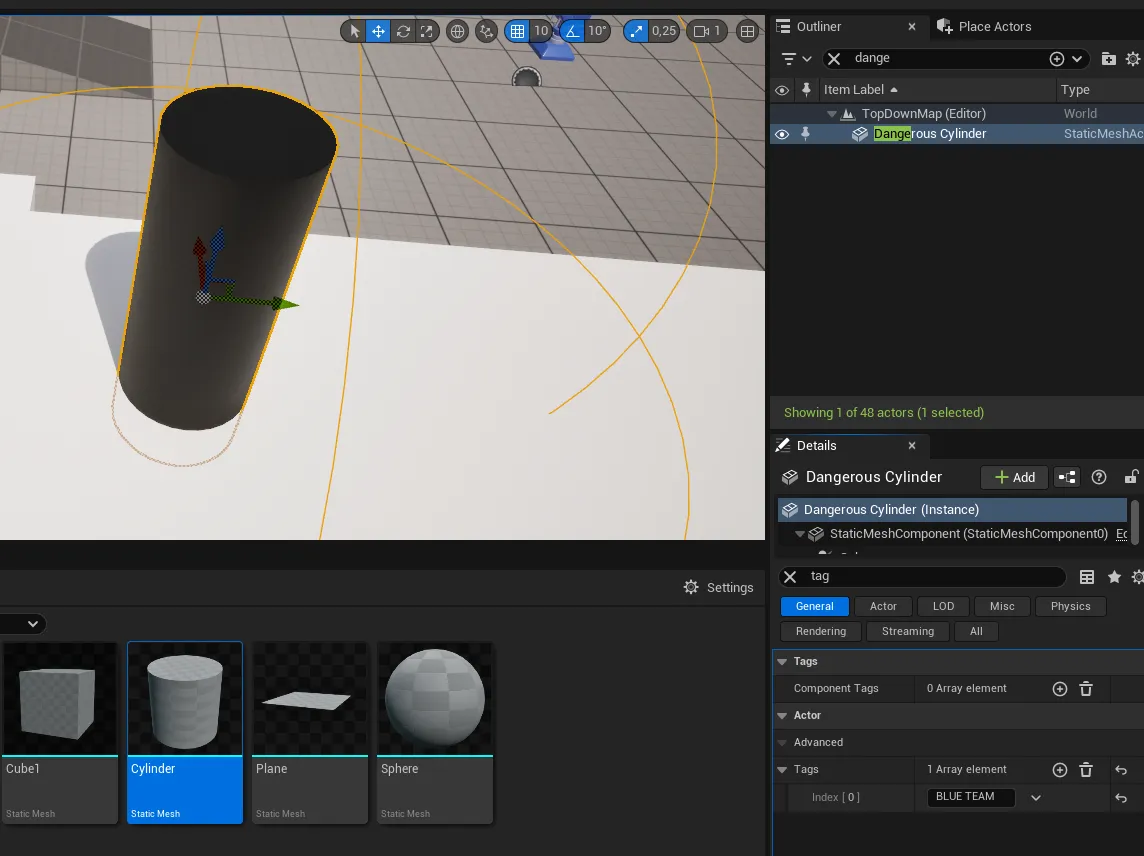

A common pattern: tag your enemies (for example with a team tag like BLUE TEAM)…

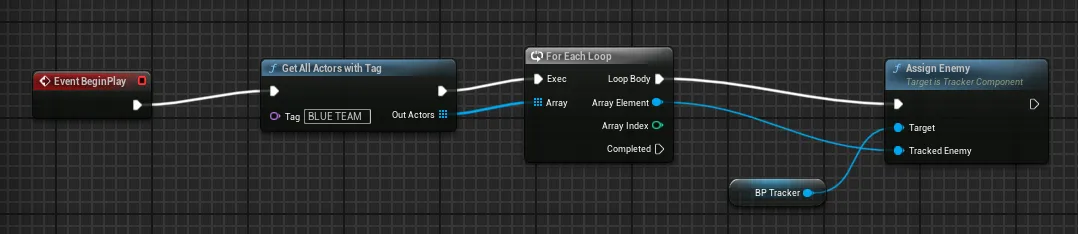

…then gather them with Get All Actors With Tag and pass the array to Assign Enemy on the tracker. Do this on the server.

Enemy requirements

An enemy can be any actor or character; how you decide what counts as an enemy (teams, tags, or your own logic) is up to your game. But every tracked enemy must have a collision component that generates overlap events (a static mesh, sphere, or box). The Tracker is a sphere that detects enemies by overlap, then confirms sight with a line trace. No overlap-capable collision means the enemy is never revealed.

Watch for oversized collision

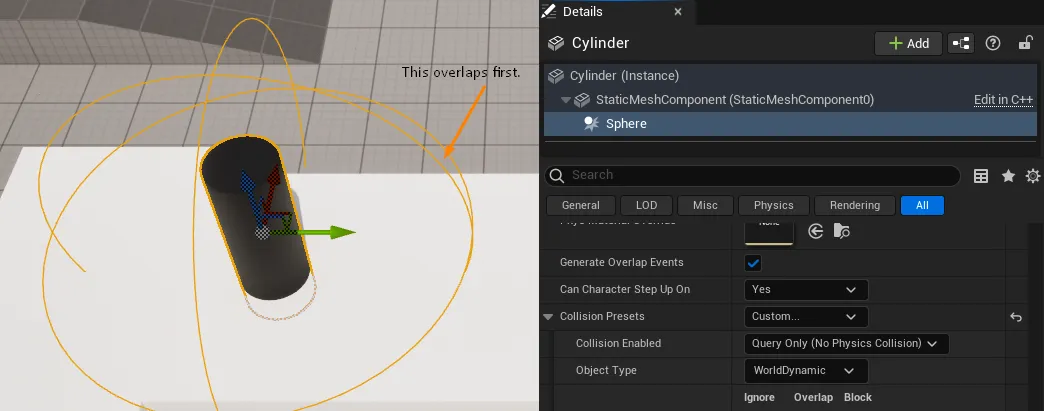

If an enemy has a large collision volume, it can overlap the tracker’s sphere and be revealed before it reaches the intended visibility range. For example, this enemy carries a wide WorldDynamic collision sphere:

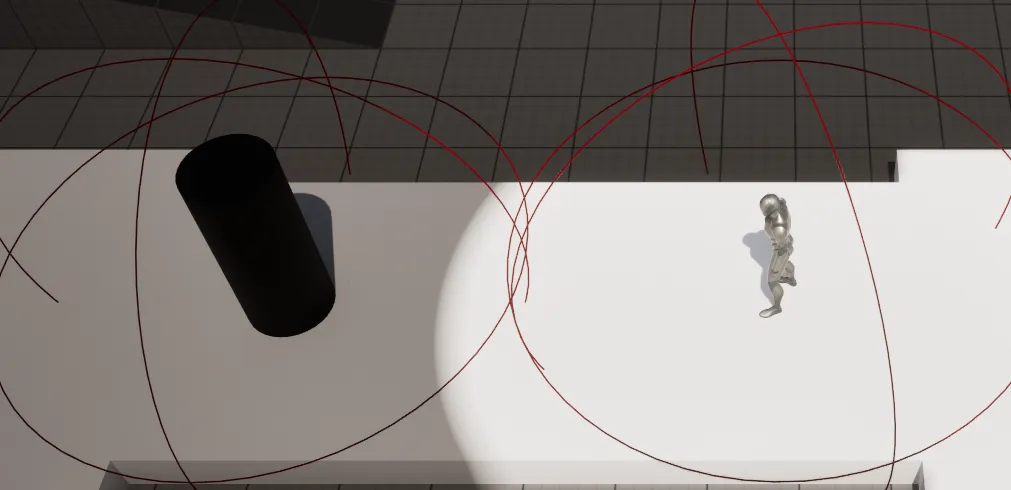

Because that volume overlaps the tracker, the enemy is detected and revealed too early:

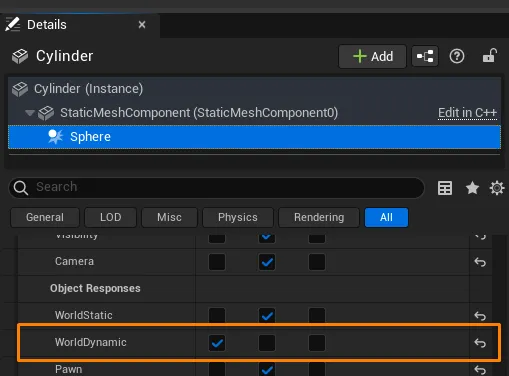

The fix is to make the enemy’s extra collision (for example a WorldDynamic sphere) ignore the tracker’s collision channel, so only its primary collision body triggers the reveal.

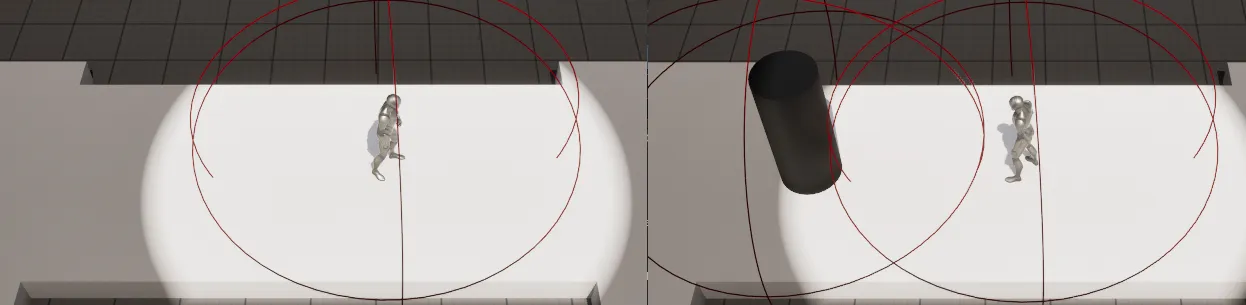

With that change the enemy stays hidden until the tracker overlaps its main body at the proper range.

Field of view

By default a tracker sees in all directions. Set Field Of View Angle below 360 to restrict vision to a cone in front of the owner:

Value	Result
360	Omnidirectional (default). No restriction.
< 360	A cone of that full angle, centered on the owner’s forward direction.

The cone affects both the visual fog reveal and the enemy line-of-sight check, so an enemy behind the player stays hidden even when close.

Beacons

BP_Beacon (a Blueprint subclass of UBeaconComponent) is a sphere component you add to any actor that should grant the player extra vision: allies, watchtowers, scouting wards, deployables. A beacon reveals its own area and reports the enemies it can see back to the player’s tracker.

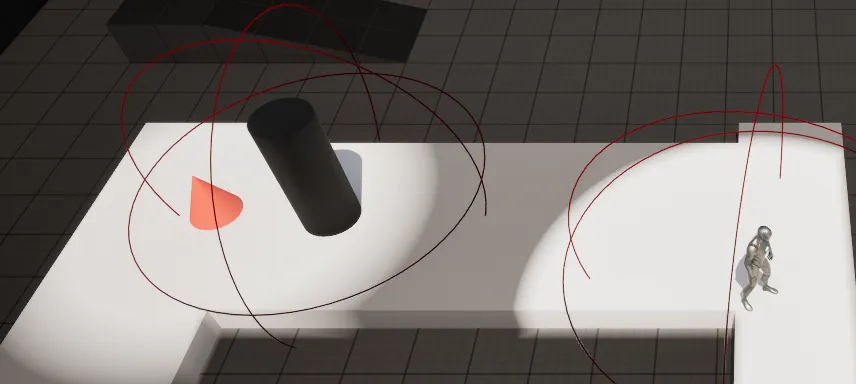

In this example a cone actor is turned into a beacon, so it reveals the dark enemy sphere even though that enemy is outside the player’s own line of sight:

Property	Default	What it does
Visibility Radius	400	How far the beacon sees, in world units.
Field Of View Angle	360	Same cone behavior as the Tracker: 360 is omnidirectional, lower values restrict to a forward cone.

Add the BP_Beacon component to the actor’s Blueprint:

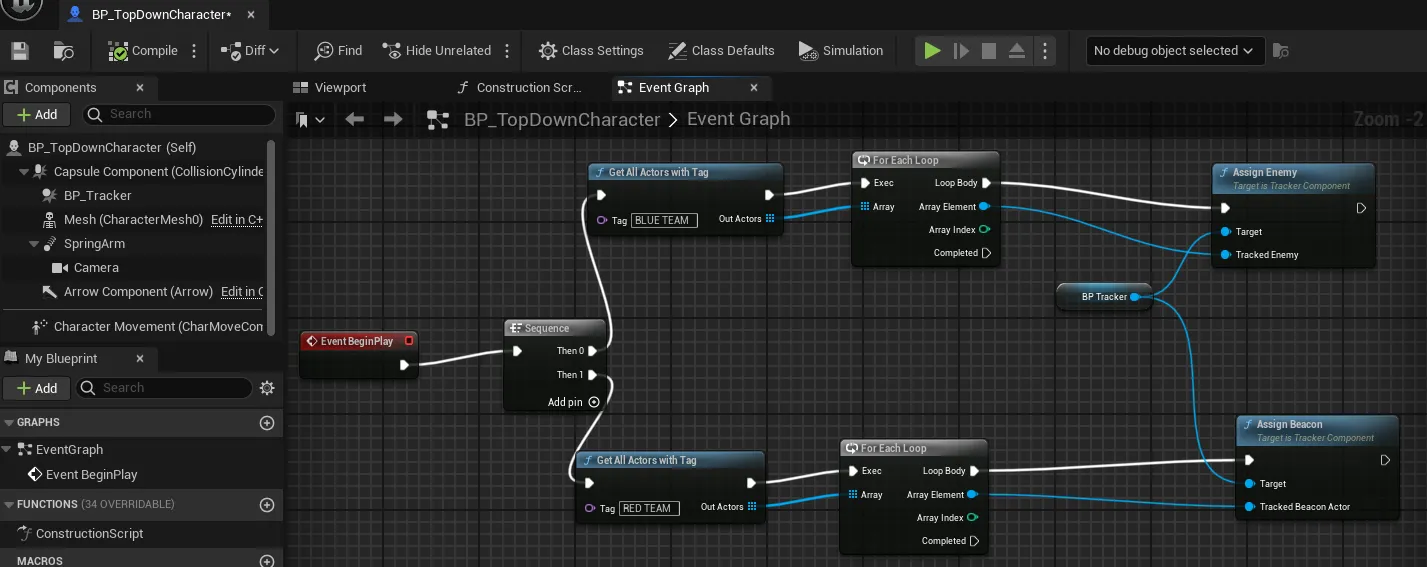

Link a beacon to a player by calling Assign Beacon on that player’s tracker, passing the beacon’s owning actor. The pattern mirrors enemies: tag the beacon actors (for example RED TEAM), gather them with Get All Actors With Tag, and feed the array to Assign Beacon. Once linked, the beacon’s vision is folded into the player’s, including any enemies it can see.

Why the lit circle looks slightly larger than the radius

A beacon’s collision sphere is intentionally a little smaller than its Visibility Radius, because the material fades vision out at the edge. The material’s soft falloff covers the gap, so the visible lit area matches the radius you set.

How visibility composes

An enemy can be seen by several sources at once: the player, plus one or more beacons. To avoid an enemy flickering when one source loses sight while another still has it, visibility is reference-counted on the server:

• Each source that can see an enemy adds 1 to that enemy’s count.
• When a source loses sight (it walks out of range, an occluder blocks it, or the enemy leaves the cone), it subtracts 1.
• The enemy is shown to the client while the count is above 0, and hidden only when it reaches 0.

This is all server-authoritative; the client just receives the final show/hide decision. See Multiplayer & Networking for how that is replicated.

Beacons tick less often

Beacons run their sight checks a few times per second rather than every frame, so adding lots of them stays cheap. The player’s own tracker checks every frame for responsiveness.
