Gatherer Component

The Gatherer Component goes on your minion character and runs the whole gather loop. Add it to a Character, point it at an Assignment Definitions data asset, and drive it with the included Behavior Tree or your own.

Settings

Set these on the component defaults.

Property	Meaning	Default
Resource Search Radius	How far from the home location the minion searches for a matching resource.	2500
Available Assignments Data Asset	The Assignment Definitions asset listing every order this minion can take.	none

Caution

If Available Assignments Data Asset is empty, the minion logs an error and cannot take any order. This is the most common “nothing happens” cause.

Runtime state

Read these at runtime (for example, to drive animation).

Property	Type	Meaning
Current Gathering State	EGathererState	Idle, Extracting, or Carrying. Replicated and read-only.
Character Home Location	Vector	Where the minion drops what it gathers.

Current Gathering State exists specifically to feed your Animation Blueprint: switch between idle, harvesting, and carrying poses off this enum. The demo’s ABP_Minion does exactly that.

Functions

All of these are Blueprint-callable. The included Behavior Tree calls them for you in order; call them yourself only if you write your own AI.

Function	What it does

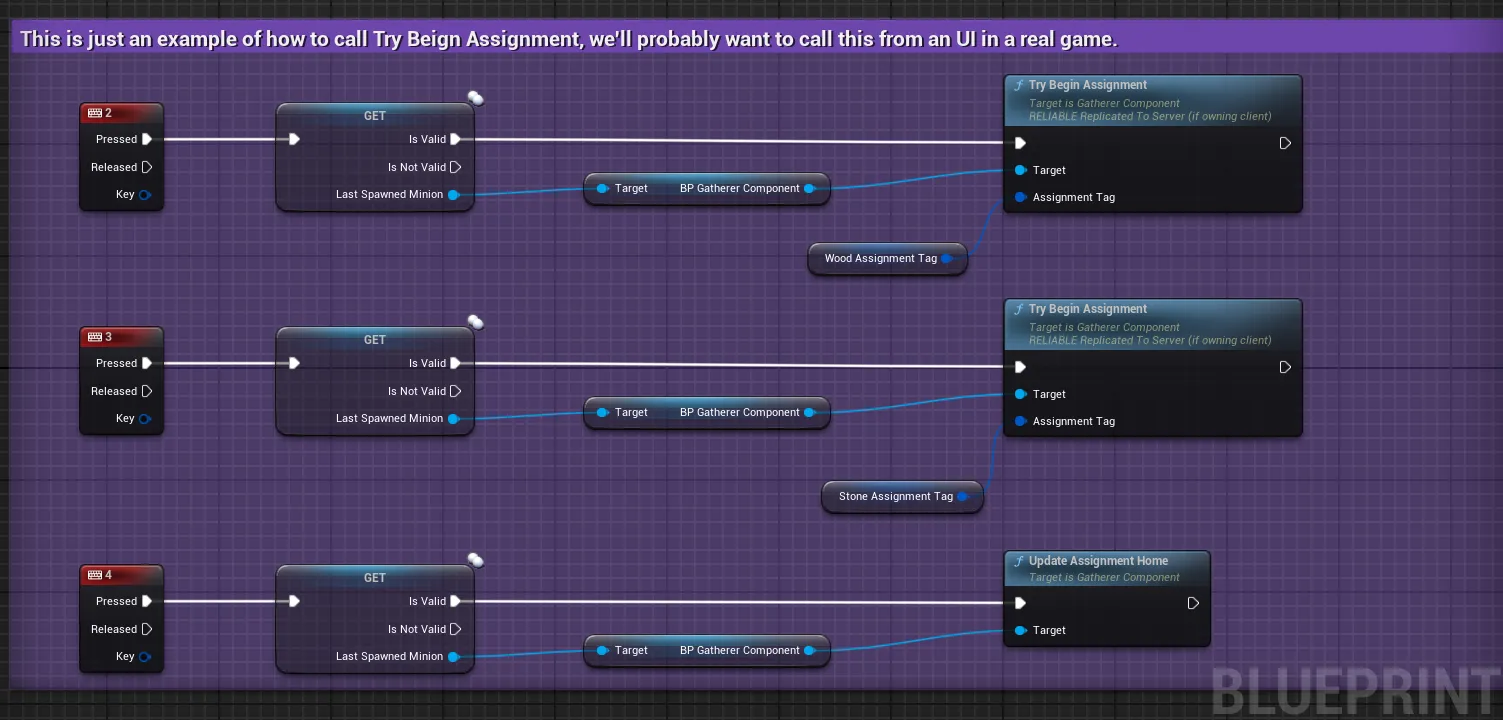

Try Begin Assignment (AssignmentTag, HomeLocation)	Start an order. Cancels any in-progress work first. Pass HomeLocation as zero to auto-detect the drop-off from the ground under the minion; pass a world location to set it explicitly. This is a server call.
Update Assignment Home	Re-target the home (and any spawned Home Actor) to the point under the player’s cursor.
Try Find Closest Resource Actor (out ResourceActor)	Find the nearest actor whose Resource Tag matches the active order, within the search radius and reachable by navigation.
Try Begin Extracting Overlapping Actor	Begin harvesting the resource the minion is currently overlapping. Returns whether extraction started.
Try Spawn Extracted Resource And Attach To Character	Spawn the order’s carried actor and attach it to the chosen socket.
Detach Extracted Resource From Character	Drop the carried actor at the home location, where it settles onto the pile.

Note

Try Begin Assignment is a reliable server function. Calling it from a client routes to the server automatically, but the minion must be owned by the calling player for that to work. See Multiplayer & Replication.

Events

Bind these BlueprintAssignable delegates to react to the loop.

Event	Fires when
On Gatherer Extraction Complete	A resource finishes extracting. The carried actor is spawned and attached to the socket at this point.
On Dropped Actor	The carried resource is dropped (at home, or because a new order interrupted the haul).

The carried actor’s Extracted Resource Component binds to On Dropped Actor automatically when it is spawned, so it can fix its own collision on landing; you do not need to wire that yourself.

Reassigning mid-task

Try Begin Assignment is safe to call at any time. If the minion is already working, it cancels the in-progress extraction and drops whatever it is carrying in place before starting the new order, so orders never stack up or leak a half-finished haul.
